If you've ever struggled with using your piano's small screen, then you're in luck! This tutorial will explain how to output what's showing on your model onto a larger, external screen like your TV or computer monitor.
Step 1.
The first step is to determine what input your screen has, namely, whether it uses HDMI, or the older VGA style ports (or in some cases, both). Below are images of what these look like. Where the input ports are would depend on the monitor/screen you are using, but generally they are found on the back.

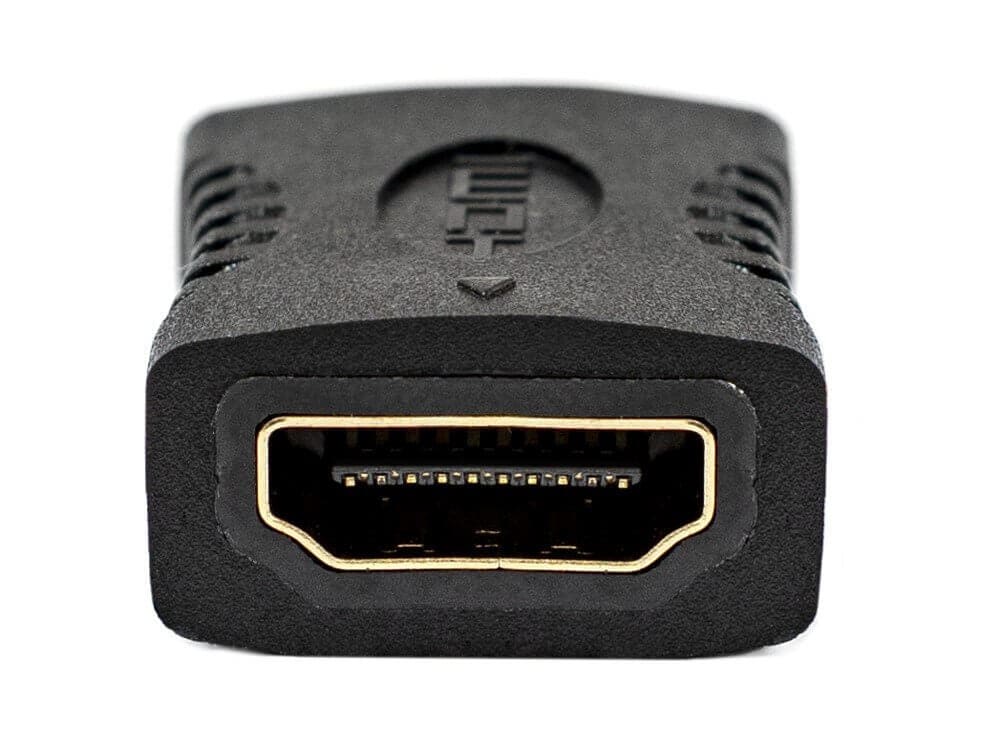

HDMI Port VGA Port
(If your monitor/screen has both input types, then I would recommend ignoring the VGA port and following the instructions for HDMI, as HDMI accessories are generally cheaper, and will be faster.)
Step 2.
To connect the Genos to the screen you will need at least two accessories.
For screens which use HDMI, you will need:
A USB to HDMI Adapter An HDMI Cable
For screens which use VGA, you will need:

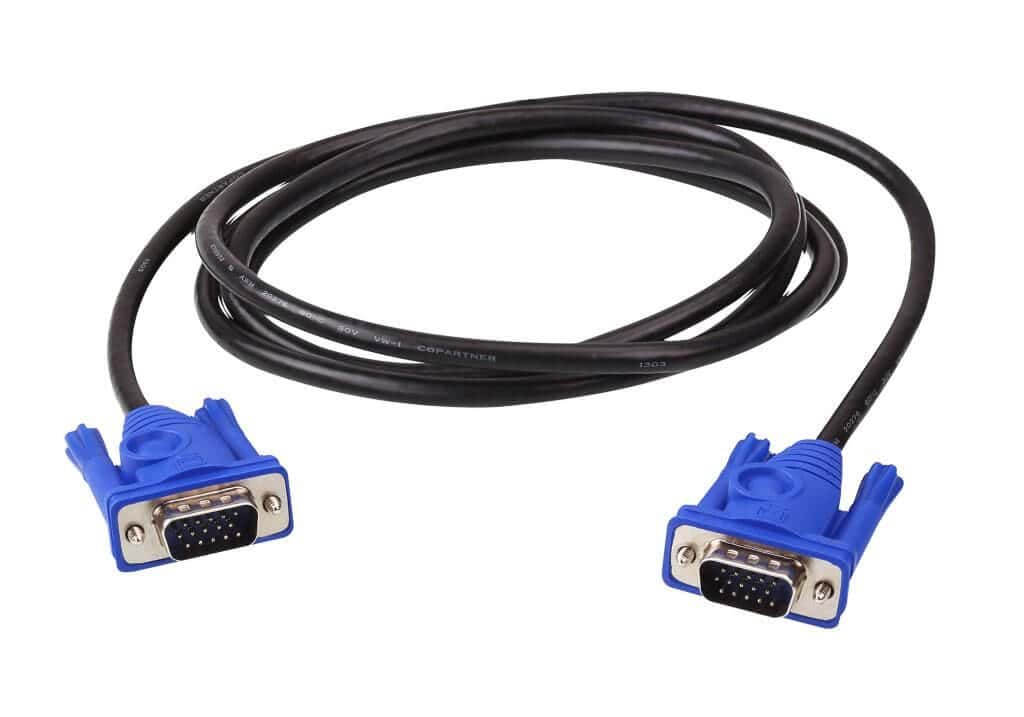

A USB to VGA Adapter A VGA Cable
We do not sell these accessories ourselves, but you can find them readily available online.
Step 3
Turn off your Genos, and plug the USB end of the VGA / HDMI adapter into the USB to device port around the back of the Genos.
Now, plug one end of the the VGA / HDMI cable into the adaptor, and the other end into your monitor. Make sure all the cables are all plugged in fully, with no loose connections.
Make sure there are no loose connections between the Genos and Screen
Step 4
Once everything is connected, turn on your screen, and make sure the correct input is selected (most screens/monitors will do this automatically).
Now, turn on your Genos. Once it has fully powered up, you should see the contents on the touchscreen showing on your external screen/monitor. You can choose whether you want to mirror what is showing on your Genos screen, or whether you’d like the lyrics of your selected song to display. Doing the latter is ideal for karaoke parties!
You can choose the display content that is to be output via MENU > Utility > Speaker/Connectivity.
First off I must advise against using a standard USB TO HDMI. I say this simply because it does not work, so please avoid using this method. If you want a crystal clear picture then follow these instructions!
The company Pluggable makes a screen adapter called the UGA165. This ranges from £40-£70 and is perfect for the job. Providing clear screen coverage with smooth real-time pictures. It is available to purchase in a number of places online.
This is what it looks like…
And here’s how to use it…
Step 1 – Plug the USB on the adapter into the bottom USB output on your CVP800 series piano. It must be the one located underneath the instrument and not the one on the face of the instrument.
Step 2 – From here the USB cable will go into the DVL adapter. It looks like a small black box no bigger than an iPhone. This is the main body of the adapter, and where your picture will be converted. It handles all the main processing of the image.
Step 3 – From here the DVL can be plugged into two different cables, each for a different type of screen. Depending on what you are using to display your picture. You can use either the…
VGA port – This is the cable that you will use if you are connecting to a computer screen. This is lesser-known input, but works just as well!
HDMI port – This is the cable you will use if you are connecting to a TV screen. This is one of the more common image cables and you can find an input for it on every TV (Provided it’s not a black and white TV)
