Korg Pa5X-88 | Touchscreen Arranger with 88-Key Piano Action

£4,299

Korg PAAS Speaker available in 'Options & Accessories'
Awaiting Stock - Order Yours Now

FREE UK Mainland Delivery | 5 Year Warranty | User Manual | Power Supply

Delivery Information Order before 2pm for next-working-day courier delivery (in-stock items). You will be notified when pre-ordered stock is available, in order to arrange delivery.

Some of the items we sell arrive boxed with some assembly required, but this is usually just the very basic construction of a base on top of which the already assembled top unit of the piano/keyboard sits (full instructions are always included where needed).

We want you to be completely satisfied with your purchase, which is why we offer a no-quibble 14-day returns policy more information here.

More coming - preorder now

Options & Accessories

The Korg PaAS is a high-fidelity speaker/amplification bar specifically designed to connect directly to the Pa4X and deliver outstanding sound reproduction.

NOTE: Not compatible with Yamaha L300, LP1, or LP7A pedal units

Novuna Finance OptionsPLEASE NOTE: If you would like to add accessories to your finance purchase, please select these from the accessories menu and NOT from the "Options and Accessories" tab.

Don't forget to select from the add-ons category for discounted accessories applicable when purchasing an instrument.
Category:
Watch on ePianos TV
YouTube video
Korg PA5x – Talk with an Expert – Part 2
ePianos
YouTube video
Korg PA5x – Talk with an Expert – Part 1
ePianos
YouTube video
Korg Pa5X LIVE demonstration
ePianos
YouTube video
Korg Pa5X keyboard unboxing
ePianos
View all

Introducing the Korg Pa5x – Korg’s most powerful arranger keyboard to date

Pa5X-88 represents a redefinition of professional arranger keyboards. The flagship of the Korg Pa series, Pa5X boasts thousands of high-quality sounds, hundreds of meticulously crafted backing styles, and entirely new features that solidify its place as the professional arranger.

In this 88-key version, the Pa5x’s key action is realistically weighted just like a ‘real’ piano, providing total authenticity and freedom of expression.

PA5x-88 | Highlights

• More than 2,200 incredible sounds with new EDS-XP sound engine
• More than 600 realistic and versatile backing styles utilising new technology based on round-robin sampling
• Luxurious brushed aluminium and wood design with a choice of three keyboard lengths
• Expandable with onboard sampling, deep editing capabilities, and a new flexible file system
• Dual players with exclusive XDS crossfade control allows the playback of any two styles, MP3s, or MIDI songs together
• Versatile real-time controls
• Songbook and set lists for simple setting organisation and recall
• Powerful effects and extensive inputs/outputs

Pa5x-88 | Introduction

Featuring a brushed aluminium body with wooden side panels, Pa5X-88 boasts a detailed and immersive adjustable colour touch screen, supported by an array of intuitive hands-on controls. More than 2,200 professionally crafted sounds are powered by an expanded EDS-XP sound engine; these sit alongside more than 600 dynamic backing styles covering a huge array of musical genres.

Whether at home, in a studio, or on stage, an unprecedented selection of advanced features sets Pa5X-88 apart as it marks the beginning of a new generation of professional arranger keyboards.

Versions

Pa5X-88 looks incredible in the home, while also being ready for the road. A beautiful aluminium body with luxurious wooden side panels ensures Pa5X-88 not only has a premium feel but is also sturdy to support countless live performance situations.

From the effortlessly compact 76-key model to the versatile 76-key, and piano-weighted 88-key versions, Pa5X provides the player with a responsive feel, with aftertouch for added expressivity

Thanks to a newly-developed EDS-XP sound engine (Enhanced Definition Synthesis – Expanded), the sounds in Pa5X-88 need to be heard to be believed. This powerful technology, alongside 24 stereo oscillators and 160 note polyphony, delivers the detailed nuances of instrument performance like never before.

Sounds

Drawing on Kronos, Nautilus and SV2, Pa5X-88 has massive sound libraries across every genre, from pianos to EPs, orchestral, synthesized sounds and more. A new drawbar organ section even offers realistic controls and a sound which benefits from the stunning effects found within Pa5X. Smooth Sound Transition ensures seamless changes of sound and style, while Sound Controller 3 helps give an unprecedented level of sonic realism.

In addition to more than 2,200 factory sounds, Pa5X-88 features a sampler and can be expanded through compatibility with Wav, AIFF and SF2 samples. Detailed onboard editing functionality gives the possibility of fine tuning your sounds, even offering the capability to
transform an audio loop into a percussive kit.

Styles

Pa5X-88 features more than 600 backing styles, each with three introductions, four variations, four fills, a break, and three endings. Covering a breath-taking array of musical genres, from pop, classic pop and ballads, to jazz, big band and movie soundtracks, Pa5X provides countless hours of musical inspiration and performance.

New drum and percussion sounds benefit from the use of technology based on round-robin sampling, meaning that no two drum hits are equal. This, combined with the ability to edit each part of the drum kit individually, gives new and recreated styles a fresh sound that you can make your own.

Pa5X-88’s chord recognition system can be as simple or advanced as you want it to be; from a single finger, to an Expert mode able to recognise some of the most complex harmonies. With a chord sequencer and hundreds of pre-made chord progressions, you’ll never be short of inspiration.

Pa5x-76 | Feature Highlights

Dual Players

Thanks to two players and exclusive XDS crossfade control, Pa5X can play two styles, MIDI files, or MP3 files simultaneously and in any combination! These two players can be mixed or can be used to play a song while another one is waiting to start. All while the Pa5X’s sound engine ensures transitions happen seamlessly.

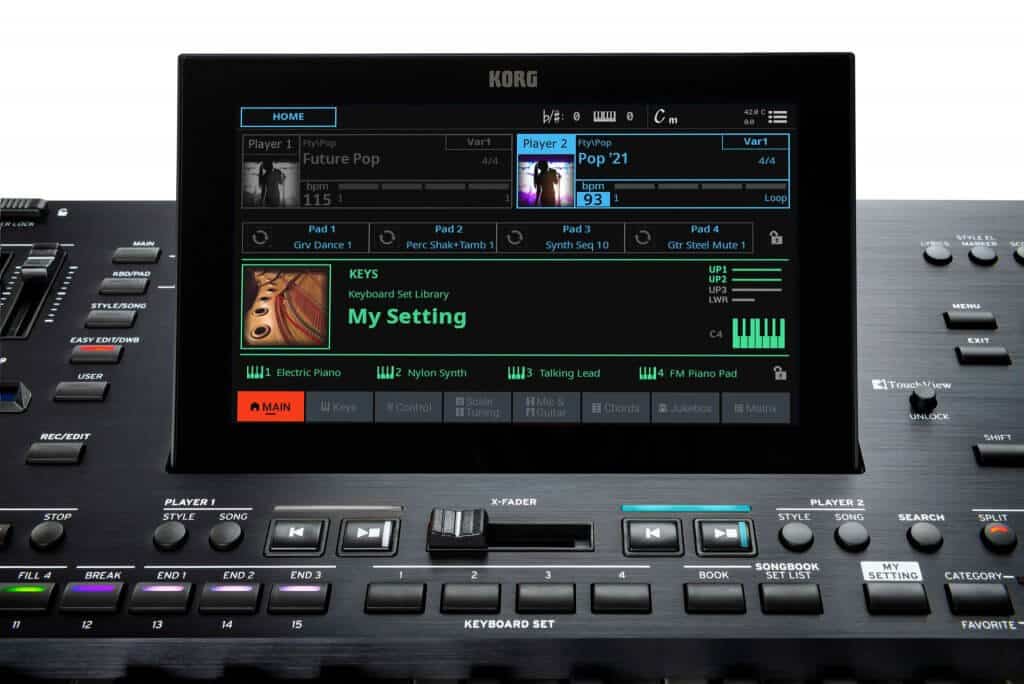

Lyrics, chords, score and markers Key performance information is displayed on an immersive colour touch screen and can also be outputted to an external display thanks to a standard HDMI output. A wide variety of lyric formats are supported, and scores are automatically generated from MIDI song files.

Markers allow for quick navigation through songs, while the currently playing chord is displayed – including during automatic introductions and endings.

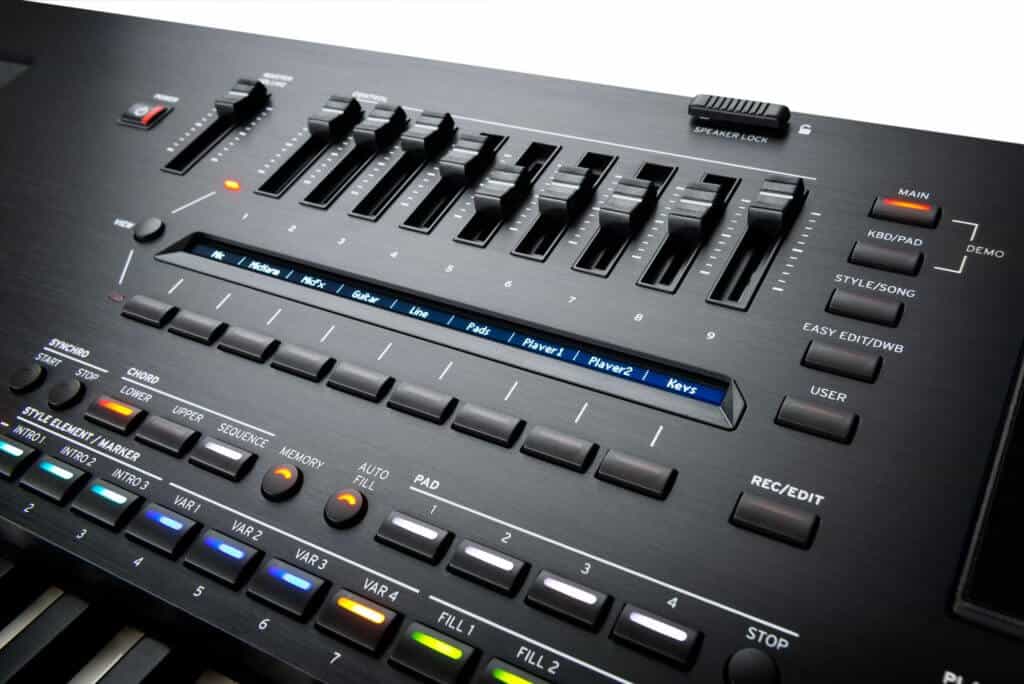

Real-time Controls

Faders, switches, real and virtual matrices of real time controls, the joystick, and the ribbon controller can all be assigned to modulate any parameter of your sound. This provides precise control of the most subtle nuances and articulation.

Pa5X features a fully programmable control section with nine faders and nine buttons. Freely assignable, the current function is shown on an auxiliary strip display so that you always know what you have under your fingertips – even if you are on a different page on the
main display.

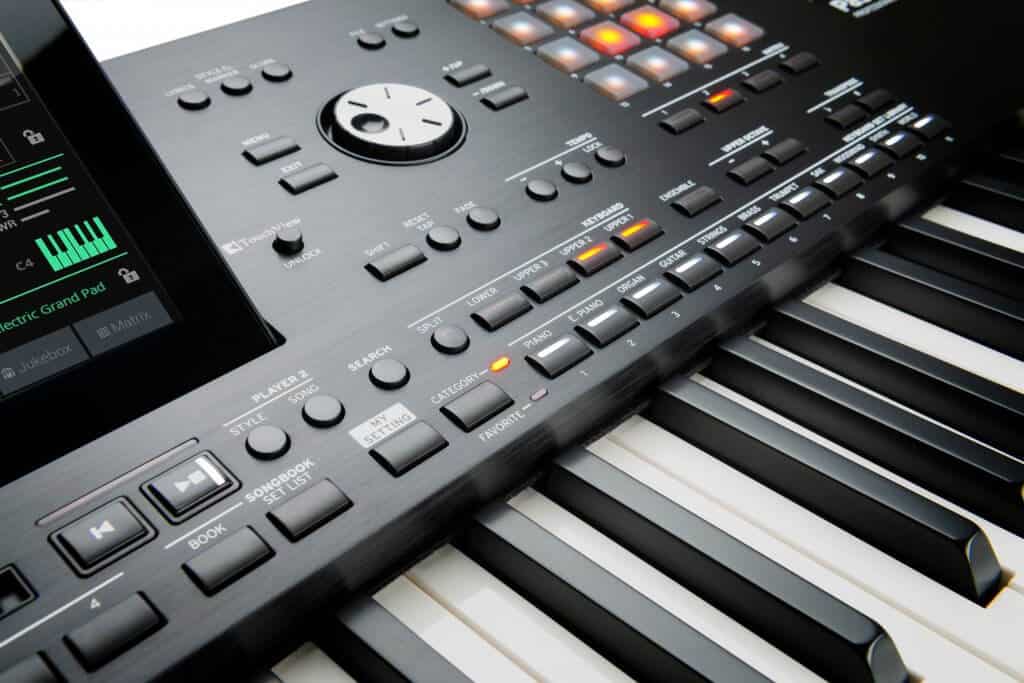

Songbook

Songs, styles and sounds can be saved into the Songbook. This database-like system can then be organised into set lists for specific performances, types of music, or any other situation where quick recall of settings is needed.

It is even possible to synchronise the songbook with external score readers on tablets, allowing you to recall settings from a digital music book.

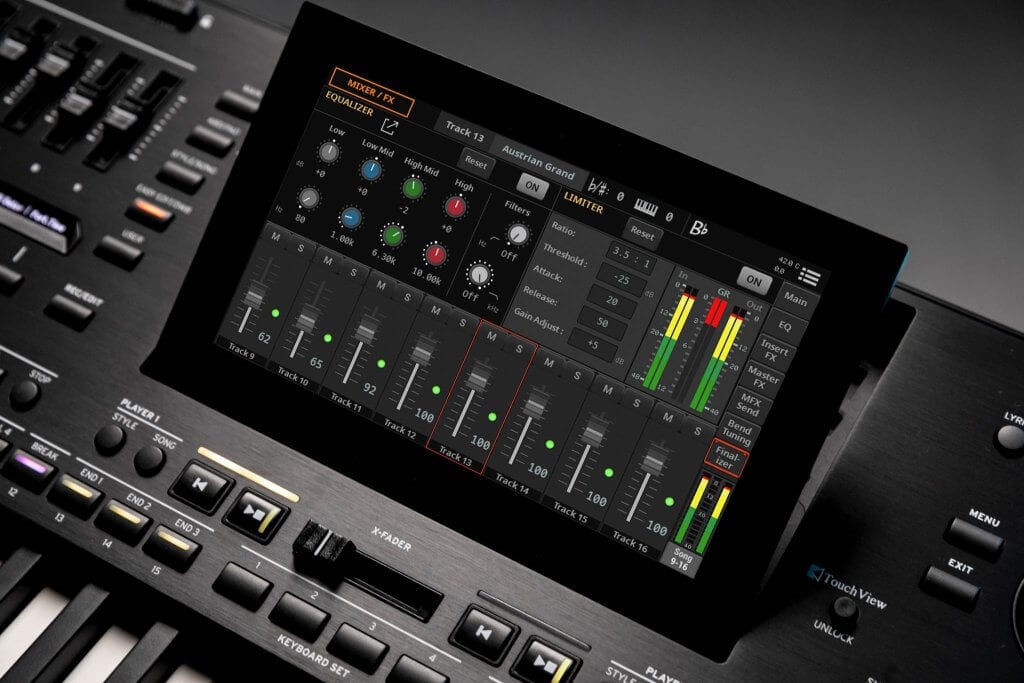

Mixer & Effects

Pa5X houses a vast array of studio-level effects, with 10 insert effects, 3 master effects and one finalising stage for each of the two players! Furthermore, keyboard sets can use up to 3 insert and 3 master effects. Thanks to an ongoing collaboration with Waves Audio®, Pa5X benefits from best-in-class mastering at the last stage in the audio output, resulting in a polished and high-production quality sound.

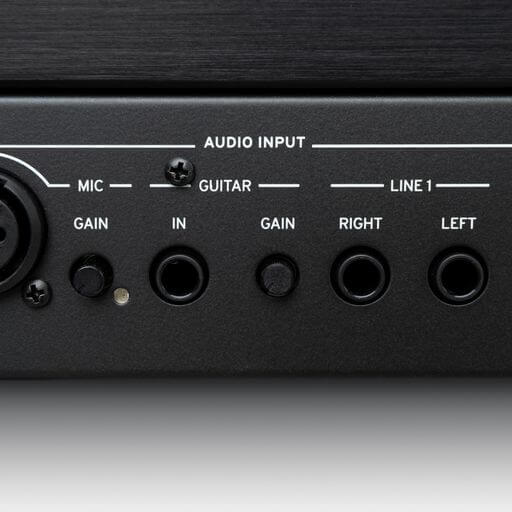

Microphone and guitar inputs

A microphone and guitar can be connected simultaneously to the Pa5X, where both inputs have dedicated on-board effects. Vocal processing in Pa5X-88 is provided by Shift Audio, industry leaders in vocal algorithms. The result is incredibly lifelike four-voice harmonies
that recreate the feel of real backing vocals, alongside a new Auto Pitch feature.

The separate guitar input has its own gain control and stack of four insert effects. A huge library of guitar effects is available, including legendary Vox amps, vintage pedals and amp sims.

Settings for both microphone and guitar inputs can be saved within a Songbook entry for quick recall.

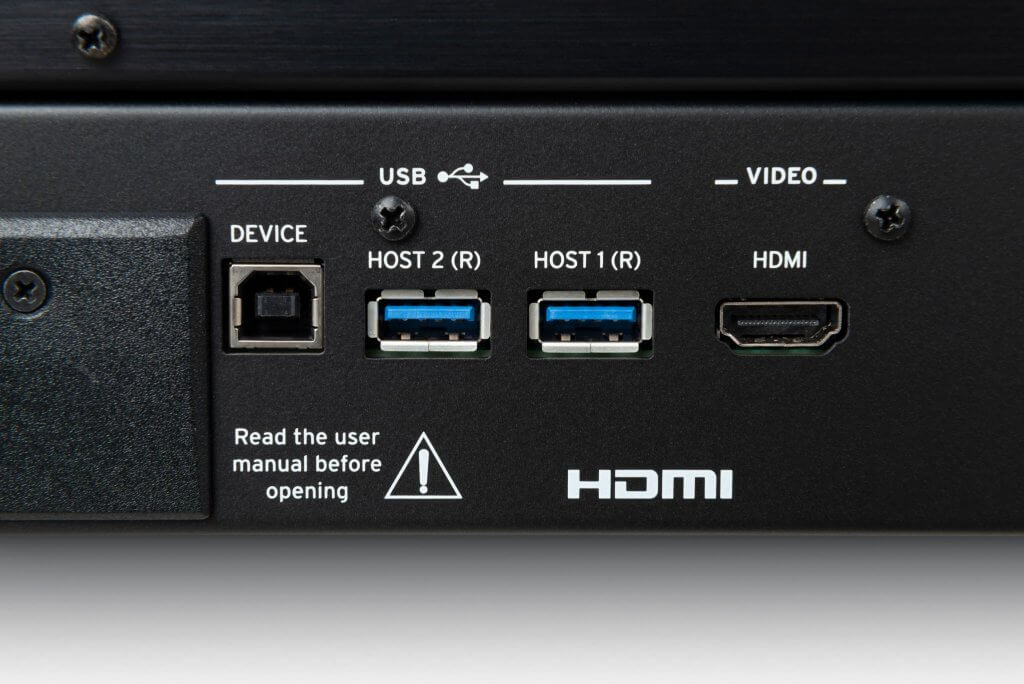

Inputs and outputs

Pa5X-88 has a huge selection of audio, control, and storage connections. MIDI and USB can be used for controllers or storage devices, while HDMI can connect an external display. XLR, jack and mini-jack audio inputs are ideal for other keyboards, condenser and dynamic microphones, guitars, smartphones, and tablets.

Pa5X has two primary balanced outputs to connect to powered speakers or PA systems, and a further four separate line outputs are available to handle sounds separately. Three pedal inputs can be used for damper pedals (with half-pedal support), footswitches, volume or expression pedals

Specification

Keyboard
Pa5X 61: 61 keys (C2 – C7) Semi–weighted keys with Aftertouch
Pa5X 76: 76 keys (E1 – G7) Semi–weighted keys with Aftertouch
Pa5X 88: 88 keys (A0 – C8) Hammer action with Aftertouch
Case
Aluminum case with wooden side panels
Operating System
Upgradable Operating System
Sound Generator
EDS-XP (Enhanced Definition Synthesis-Expanded)
Multimode filters with resonance, 3-band EQ for each track
Polyphony
160 Voices, 160 Oscillators
Effects
Keyboard Tracks: 3 Insert Effect; 3 Master Effects
Style/Song: 10 Insert Effects; 3 Master Effects
Master EQ and Finalizer for Songs and Styles
Final Mastering Effects: Waves | MaxxAudio® Suite
Mic Processor Technology by Shift Audio
Mic Setup: Compressor, EQ, Gate
Four-part Harmonizer, Doubler, Filter, Modulation, Delay, Reverb, AutoPitch
Guitar Processor
Guitar rack (4 effect-slots) with stompbox and amp simulation
Sounds / Drum Kits
Factory: More than 2,200 Factory Sounds
Five multilayer Stereo Acoustic Pianos with Damper/Body Resonance, GM/XG Sound Sets, more than 130 Drum Kits including Ambient Drums and Round Robin-based Drum Kits
User Area: 768 Sounds, 384 Drum Kits
Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage, Vibrato/Chorus, Rotary Speaker with Amp Simulator
Natural Ambience Drum Sounds, Round Robin features
Defined Nuance Control (DNC) Technology
Quick and Full Sound Editing, Drum Family and Full Drum Kit Editing
Sampling
User PCM Sample memory: 4 GB of data, equivalent to 8 GB linear when compressed
Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice, Sampling features
Keyboard Sets
Factory: More than 500 Factory Keyboard Sets, freely programmable
Combines four Keyboard Sounds, plus Effects and settings
Library accessible from front-panel buttons
“My Setting” special Keyboard Set
Players
Patented XDS Crossfade Dual Player with X-Fader Balance control
Crossfading between Songs and/or Styles
Styles
Factory: More than 600 Factory Styles, freely programmable
Eight Style Tracks, 4 Keyboard Sets and 4 Pads per Style; Programmable Sounds, Effects and Style parameters
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style Record and Event Edit
Style Elements: 3 Intros, 4 Variations, 4 Fills, 1 Break, 3 Endings
Style Controls: Play/Stop, Synchro Start, Synchro Stop, Tap Tempo/Reset, Auto Fill, Memory, Bass Inversion, Manual Bass, Bass & Lower Backing, Drum & Bass, Individual Style Tracks Mute, Style to Keyboard Set Set
Chord Sequencer
Factory: More than 200 Chord Sequences
Chord Sequence Recorder/Player
Chord Sequences can be saved to Style and SongBook Entries
Songs
Patented XDS Crossfade Dual Player with X-Fader Balance control
Supported formats: MID, KAR, MP3 + Lyrics, MP3+G
Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
Markers with Add, Delete, Edit, Loop and AutoScroll functions
Jukebox function
Full-featured, 16-track Sequencer, Song Edit
MP3 Player / Recorder
Double MP3 Player and MP3 Recorder
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Matrix, Microphone, Guitar, Effects
Transpose (+6/-5 semitones), Tempo Change (±30%)
Vocal Remover
SongBook
Fully programmable music database based on Styles, MIDI Songs (MID and KAR files), MP3 Songs with Artist and Genre tags
Filtering and sorting options
User definable Set Lists
Compatibility
Legacy Pa-Series models: Styles, Keyboard Sets (Performances), Sounds (Programs), Songs, Pads
Pads
Factory: More than 400 Pads
Four Assignable Pads + Stop Buttons
Pad Record function
Control Section
9 Assignable Sliders, 9 Assignable Buttons, Strip Display; 4 Preset + 1 User settings
Matrix Section
16 Matrix Pads, 4 Preset buttons
Style/Song Controls
Play/Stop, Go To Start, Style Select, Song Select, Xfader, Tempo +/-, Tempo Lock, Tap Tempo/Reset, Synchro Start, Synchro Stop, Fade In/Out, Chord Scan (Lower, Upper), Chord Sequence, Memory, AutoFill
General Controls
Master Volume, Octave Transpose, Master Transpose, Dial, Up/+, Down/-, Joystick (Pitch + Modulation), Ribbon, 3 Assignable Switches, Search, Shift, Keyboard Sounds On/Off, Split, Ensemble, Rec/Edit, Menu, Exit
Scale Controls
On-screen Quarter Tone and Arabic Scale, memorized in the Keyboard Sets; Presets assignable to any button or footswitch
Control Inputs
Damper Pedal; supports half-pedaling with the optional KORG DS-1H pedal 2 Assignable Pedal/Footswitch
Audio Inputs
Mic: Mono with Gain control and Phantom Power (Combo XLR, balanced)
Guitar: Mono with Gain control (1/4″ jack, unbalanced)
Line 1: Left/Right (1/4″ jacks, balanced)
Line 2: Stereo (1/8″ mini-jack, unbalanced)
Audio Outputs
Line: Main Left/Right, Separate Outs 1/2/3/4 (1/4″ jacks, balanced)
Headphones (1/4″ jack)
Video Output
HDMI connector
MIDI
IN, OUT, THRU standard MIDI connectors
USB to MIDI, through the USB Device port
16 User-definable MIDI Presets
USB
Type A (Host 3.0, for storage devices and controllers): 1 front, 2 rear
Type B (Device 2.0, for personal computers and tablets): 1 rear
Storage
Internal Drive: 1 GB
Micro SD Card (not included): Rear-panel slot with plastic cover
USB Flash Drive (not included): Can be connected to the USB Host ports
Display
8” Wide capacitive color TouchView™ TFT display, 800 x 600 resolution
Clock
Internal System Clock
Power Consumption
100-240 Volts, 50/60 Hz
< 0.2 Watt in standby / 20 Watt normal / 45 Watt with PaAS installed
Dimensions (W x D x H) (without music stand, display fully lowered)
Pa5X-88: 1,262.0 x 396.4 x 146.0 mm / 49.68” x 15.60” x 5.74”
Pa5X-76: 1,233.1 x 374.3 x 126.8 mm / 48.54” x 14.73” x 4.99”
Pa5X-61: 1,021.1 x 374.3 x 126.8 mm / 40.20” x 14.73” x 4.99”
PaAS (optional): 980 x 180 x 140 mm / 38.58” x 7.08” x 5.51”
Weight
Pa5X-88: 20.1 kg / 44.31 lbs
Pa5X-76: 17.4 kg / 38.36 lbs
Pa5X-61: 15.1 kg / 33.29 lbs
PaAS (optional): 5.70 kg / 12.56 lbs
Accessories
AC Power Cable, Music Stand, Quick Guide manual
Options
PaAS Amplification System
ST-SV1-BK Keyboard Stand
EXP-2 Foot Controller
XVP-20 Expression/Volume Pedal
DS-1H Damper Pedal (supports half-pedaling)
PS-1 Pedal Switch
PS-3 Pedal Switch
VOX V860 Volume Pedal
* Appearance and specifications are subject to change without notice.
